Additional information
| Brand | Omron electronics |
|---|---|

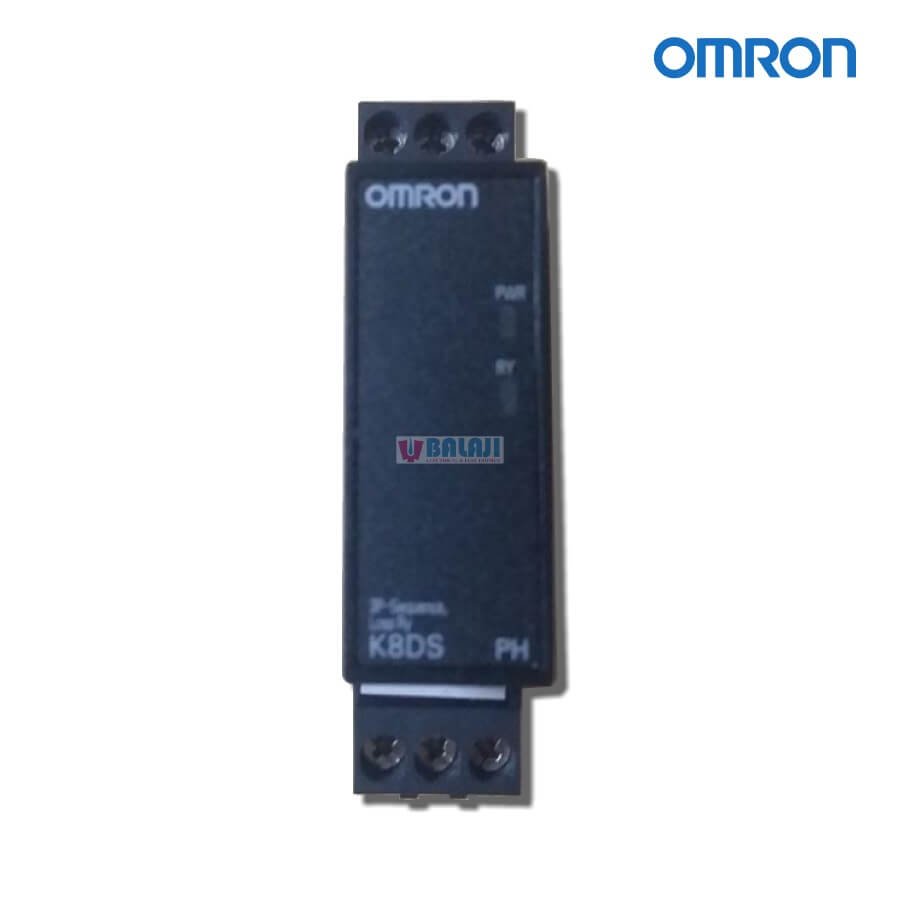

| Model No | K8DS-PH1 |
| Rated input voltage | 3-phase, 200 to 480 VAC (3-wire) |
| Input load | Approx. 2.7 VA |
| Phase sequence | 0.1 s±0.05 s |
| Phase loss | 0.1 s max. (when the voltage changes rapidly from 100% to 0% of rated voltage) |
| Reset method | Automatic reset |
| Indicators | Power (PWR): Green, Relay output (RY): Yellow |
| Output relays | One SPDT relay (NC operation) |
| Ambient operating | -20 to 60°C (with no condensation or icing) |
| Storage temperature | -25 to 65°C (with no condensation or icing) |
| Ambient operating humidity | 25% to 85% (with no condensation) |
| Storage humidity | 25% to 85% (with no condensation) |
| Altitude | 2,000 m max. |
| Terminal screw tightening torque | 0.49 to 0.59 Nm |
| Input voltage range | 200 to 480 VAC |
| Input frequency | 50/60 Hz (no presumed range) |
| Overload capacity | Continuous 500 V |
| Noise immunity | 1,500 V power supply terminal common/normal mode Square-wave noise of ±1 μs/100 ns pulse width with 1-ns rise time. Frequency: 10 to 55 Hz, 0.35-mm single amplitude |
| Vibration resistance | 10 sweeps of 5 min each in X,Y, and Z directions |
| Shock resistance | 100 m/s2, 3 times each in 6 directions along 3 axes |
| Degree of protection | Terminals: IP20 |
| Case color | N1.5 |
| Case material | PC, UL 94 V-0 |
| Weight | Approx. 60 g |
| Mounting | Mounts to DIN Track |
| Dimensions | 17.5 × 80 × 74 mm (W × D × H) |
