Balaji Electrical & Electronics

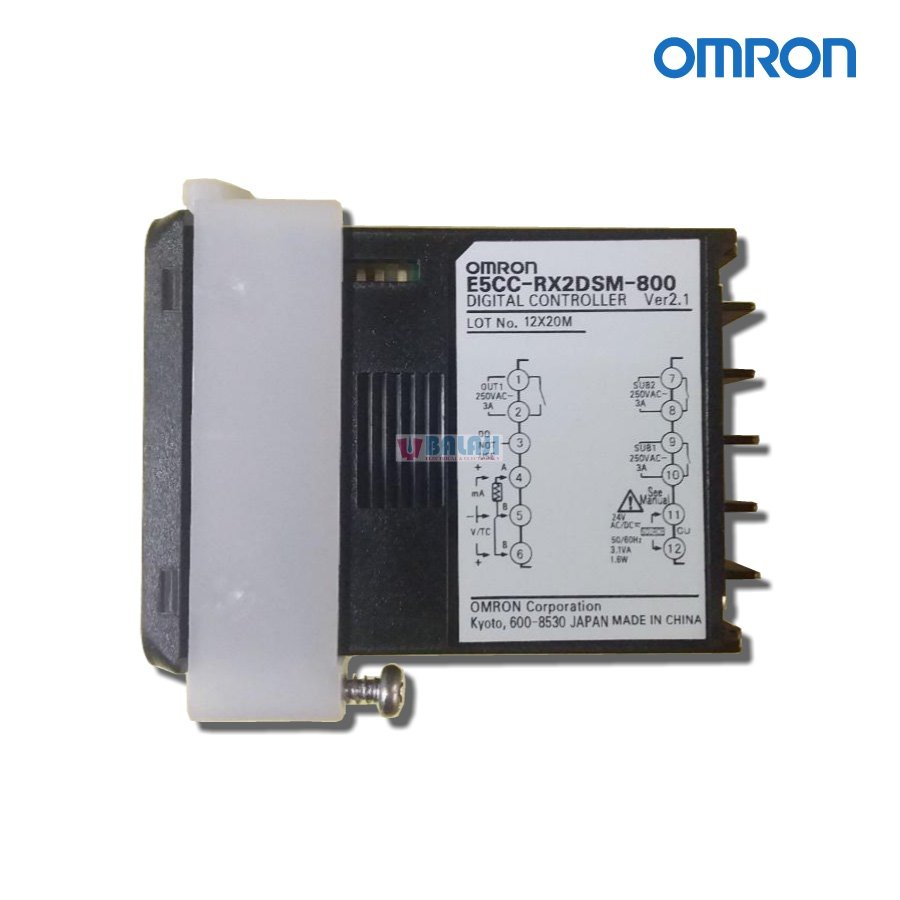

Omron Make Digital Controller E5CC-RX20SM-800


48 × 48 mm. Large White PV Display That’s Easier to Read. Easy to Use, from Model Selection to Setup and Operation. A Complete Range of I/O Capacities, Functions, and Performance. Handles More Applications.

Additional information


Omron electronics

Item Weight

0.010 ounces

Power supply voltage

A in model number: 100 to 240 VAC, 50/60 Hz
D in model number: 24 VAC, 50/60 Hz; 24 VDC

Operating voltage range

85% to 110% of rated supply voltage

Power consumption

max. at 100 to 240 VAC

Input impedance

Current input: 150 Ω max., Voltage input: 1 MΩ min

Control method

ON/OFF control or 2-PID control (with auto-tuning)

Setting method

Digital setting using front panel keys

Ambient operating temperature

-10 to 55°C


-10 to 50°C (with no condensation or icing)

Ambient operating humidity

25% to 85%

Storage temperature

-25 to 65°C (with no condensation or icing)


2,000 m max

Installation environment

Installation Category II, Pollution Class 2 (IEC 61010-1 compliant)
