Description
TYPE DESCRIPTION

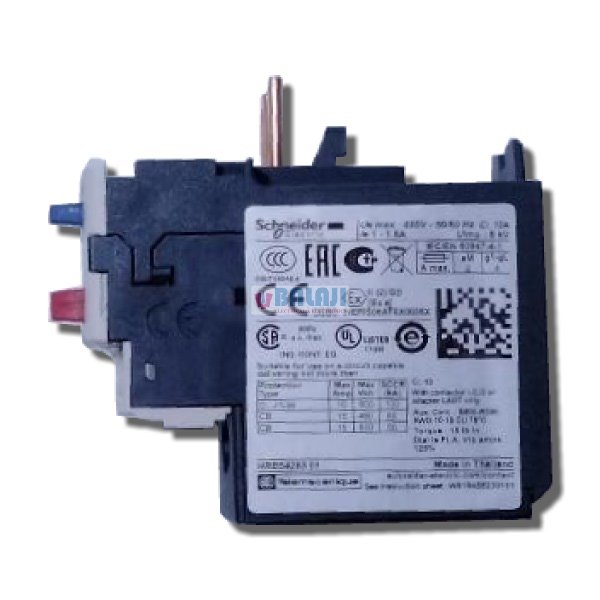

Brand Schneider
Series LRD06
|
product or component type |
Differential thermal overload relay |
|
|
device short name |
LRD |
|
|
relay application |
Motor protection |
|
|
thermal overload class |
Class 10A conforming to IEC 60947-4-1 |
|
|
thermal protection adjustment range |
1…1.6 A |
|
|
tripping threshold |
1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
|
|
auxiliary contact composition |
1 NO + 1 NC |
|
|
[Ith] conventional free air thermal current |
5 A for signalling circuit |
|
|
IP degree of protection |
IP20 conforming to IEC 60529 |
|
|
ambient air temperature for operation |
-20…60 °C without derating conforming to IEC 60947-4-1 |
|
|
ambient air temperature for storage |
-60…70 °C |
|
|
flame retardance |
V1 conforming to UL 94 |
|
|
height |
66 mm |
|
|
width |
45 mm |
|
|
depth |
70 mm |
|
|
net weight |
0.124 kg |
