Additional information
| Brand | Schneider Electric |
|---|---|

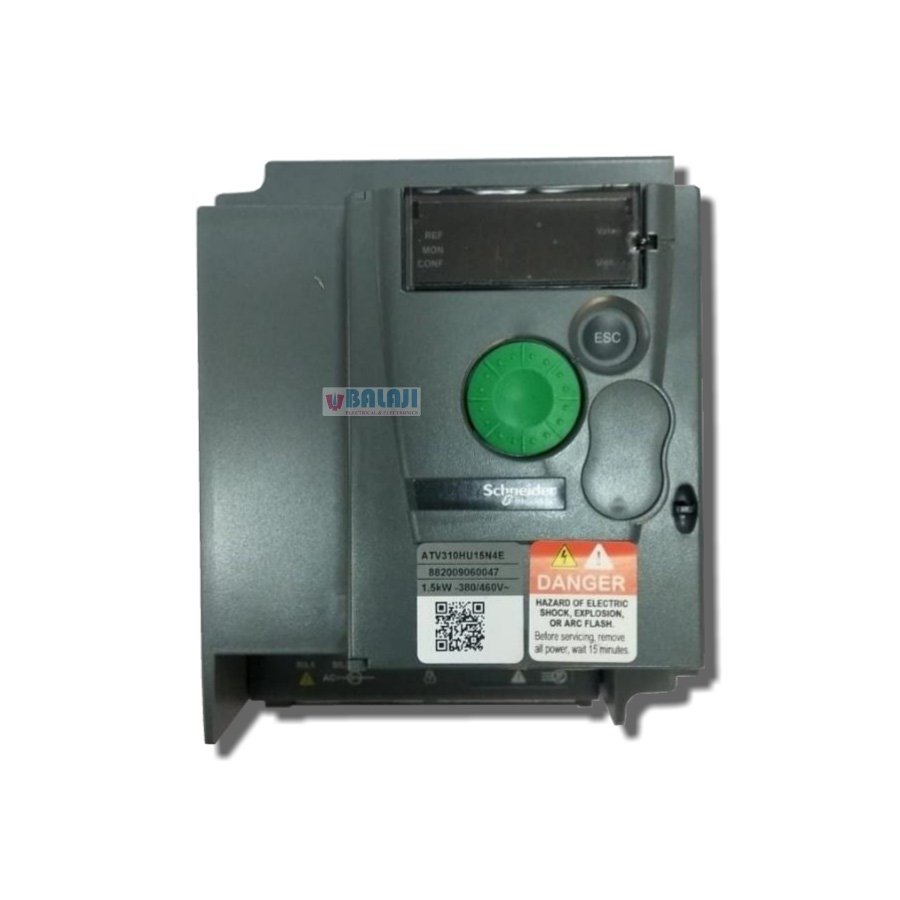

| Model No | ATV310HU15N4E |
| range of product | Easy Altivar 310 |
| product or component type | Variable speed drive |
| product specific application | Simple machine |
| assembly style | With heat sink |
| device short name | ATV310 |
| network number of phases | Three phases |
| [Us] rated supply voltage | 380…460 V – 15…10 % |
| motor power kW | 0.75 kW |
| motor power hp | 1 hp |
| line current | 3.1 A |
| apparent power | 2.5 kVA |
| prospective line Isc | 5 Ka |
| continuous output current | 2.3 A at 4 kHz |
| maximum transient current | 3.5 A for 60 s |
| power dissipation in W | 28.83 W at In |
| speed drive output frequency | 0.5…400 Hz |
| nominal switching frequency | 4 kHz |
| operating position | Vertical +/- 10 degree |
| height | 130 mm |
| width | 72 mm |
| depth | 143 mm |
| net weight | 0.7 kg |
