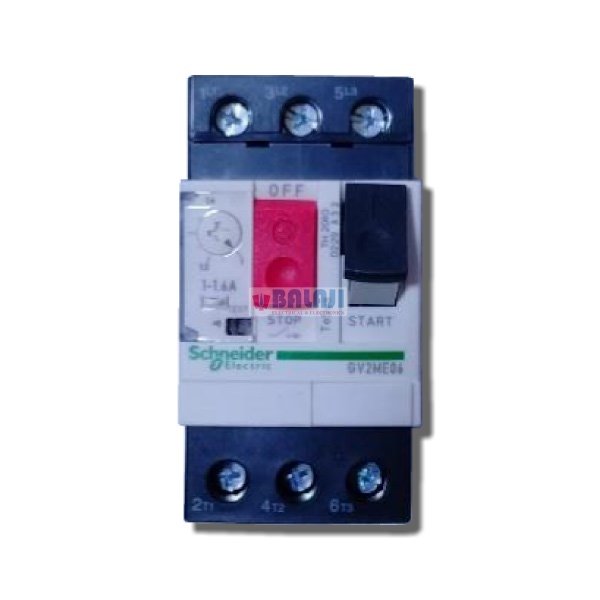

Schneider Electric 3 Pole Motor Circuit Breaker (MCB) GV2ME06

0.00

Schneider Electric 3 Pole  Motor Circuit Breaker (MCB) GV2ME06



Description

TYPE                                                   DESCRIPTION

Brand                                                        Schneider

Series                                                       GV2ME06

product or component type

Circuit breaker

device short name

GV2ME

device application

Motor

trip unit technology

Thermal-magnetic

poles description

3P

network type

AC

control type

Push-button

[In] rated current

1.6 A

thermal protection adjustment range

1…1.6 A

magnetic tripping current

22.5 A

[Ue] rated operational voltage

690 V AC 50/60 Hz

[Ui] rated insulation voltage

690 V AC 50/60 Hz

[Ith] conventional free air thermal current

1.6 A conforming to

 IEC 60947-4-1

[Uimp] rated impulse withstand voltage

IEC 60947-2 6 kV

power dissipation per pole

2.5 W

mechanical durability

100000 cycles

electrical durability

100000 cycles for AC-3 at 440 V

maximum operating rate

25 cyc/h

height

89 mm

width

45 mm

depth

78.5 mm

net weight

0.26 kg

Additional information

Brand

Schneider Electric

Series

GV2ME06

product or component type

Circuit breaker

device short name

GV2ME

device application

Motor

trip unit technology

Thermal-magnetic

poles description

3P

network type

AC

control type

Push-button

[In] rated current

1.6 A

thermal protection adjustment range

1…1.6 A

magnetic tripping current

22.5 A

[Ue] rated operational voltage

690 V AC 50/60 Hz

[Ui] rated insulation voltage

690 V AC 50/60 Hz

[Ith] conventional free air thermal current

1.6 A conforming to

IEC 60947-4-1

[Uimp] rated impulse withstand voltage

IEC 60947-2 6 kV

power dissipation per pole

2.5 W

mechanical durability

100000 cycles

electrical durability

100000 cycles for AC-3 at 440 V

maximum operating rate

25 cyc/h

height

89 mm

width

45 mm

depth

78.5 mm

net weight

0.26 kg
