Additional information
| Brand | omron electronics |
|---|---|
| Voltage | AC 90-250V |
| Sensing Distance | 5 m |

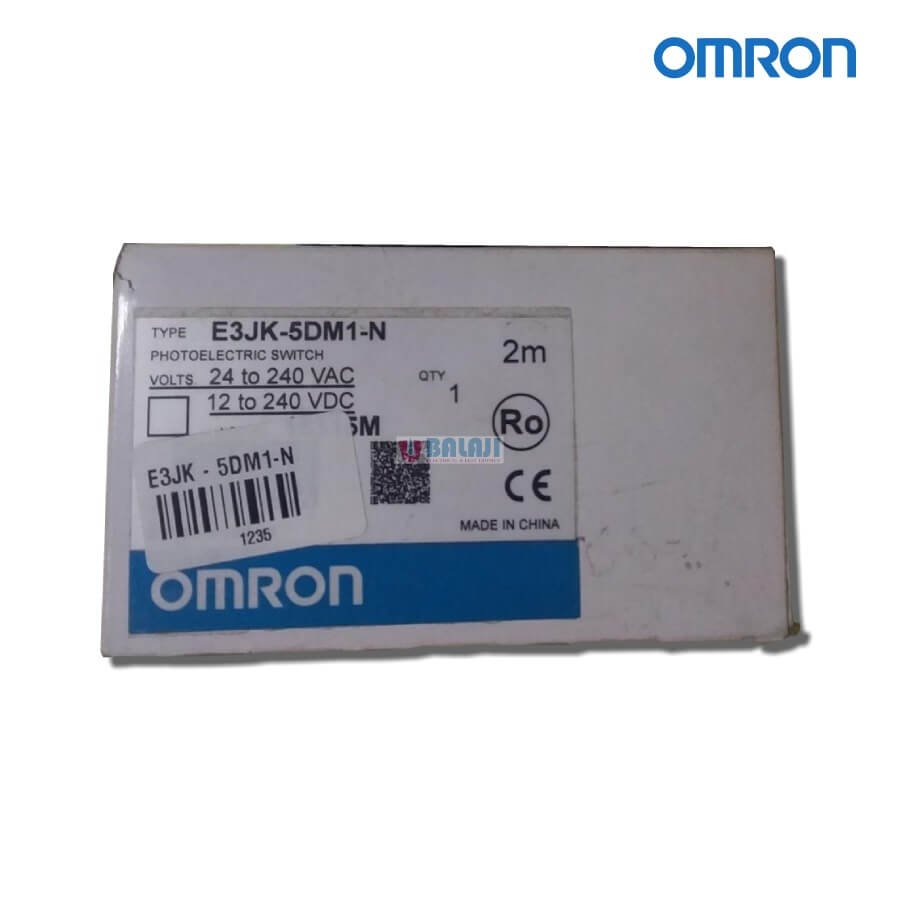

| Model Name/Number | E3JK-5DM1 |
| Size/Dimension | 2"x2"x0.75" |
| Shape | Cuboid |
| Response Time | < 30ms |
| Standard sensing object Opaque | 14.8-mm dia. min |
| Directional angle | 3° to 20° |
| Light source (wavelength) | Infrared LED (950 nm) |
| Power supply voltage | 12 to 240 VDC±10% 24 to 240 V AC±10%, 50/60 Hz |
| Ambient illumination | Incandescent lamp: 3,000 lx max |
| Ambient temperature range Operating | −25°C to 55°C |
| Operating | 45% to 85% (with no condensation) |
| Storage | 35% to 95% (with no condensation) |
| Insulation resistance | 20 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 VAC, 50/60 Hz for 1 min |
| Degree of protection | IEC 60529: IP66 |
| Connection method | Terminal block |
| Weight (packed state) | Approx. 270 g |
