Description
TYPE DESCRIPTION
Brands ALLAN BRANDLY
Item Code 324533SNI
Manufacturer ALLAN BEANDLY
Voltage Rating 415 VAC
Mounting Wall/Ceiling
Auxiliary Contacts 2 NO plus 2 NC
Sub Brand EasyPact TVS

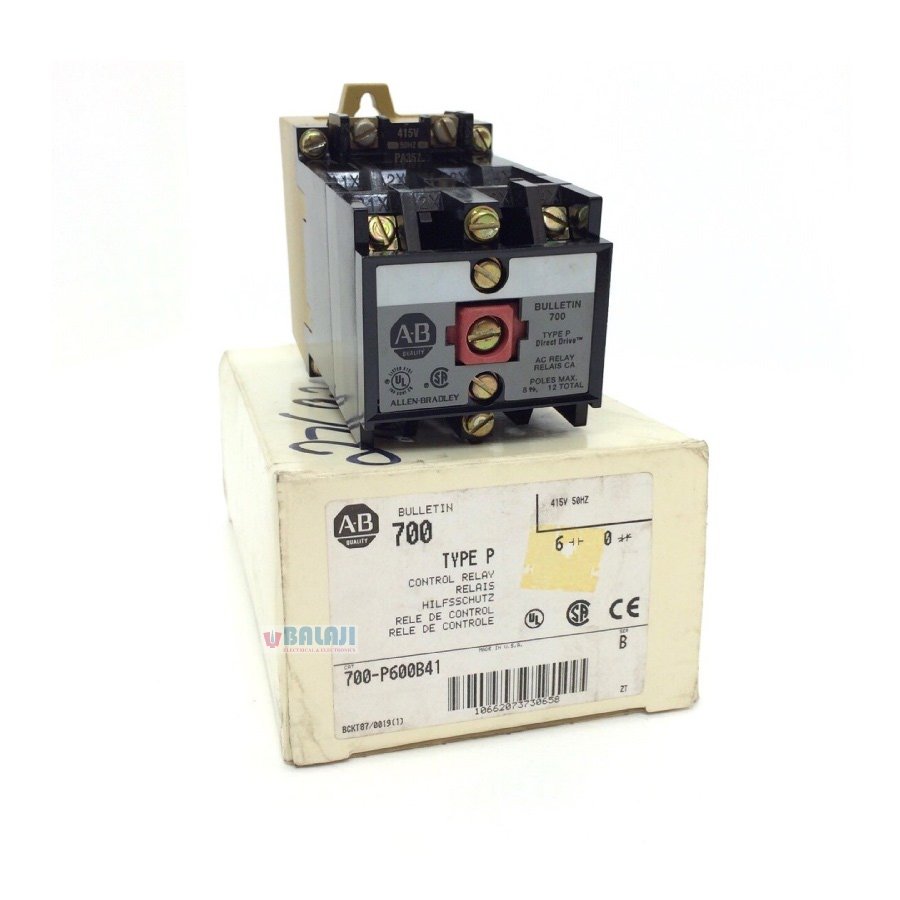

Item Control Relay
Type Category AC-14, AC-15
Frequency Rating 50 Hz
Conventional Free Air Thermal Current 10 A At <=40 deg C
Rated Operational Voltage <=690 VAC
Rated Impulse Withstand Voltage 6 KV
Minimum Switching Current 5 mA
Minimum Switching Voltage 17 V
Breaking Capacity 140 A At 690 VAC C Conforming to IEC 6 60947-5-1
Operating Rate 180 Cycle/min
Insulation Resistance >10 MOhm
Dimension 45 mm Width x 80 mm Depth x 74 mm Height
Connection Screw Clamp Terminal
Mounting Plate/Rail
Degree of Protection IP20
Temperature Rating -20 to 70 deg C (Operation)
-60 to 80 deg C (Storage)
